A. Fixtures with reflectors are firmer in structure and can obtain better heat dissipation
B. Fixtures without reflectors can still demonstrate excellent performance and are economical.
C. Anti-theft screws are available for option.
D. Triangular hooks and ceiling brackets are available for option.
E. PC or stainless steel clips are available option.

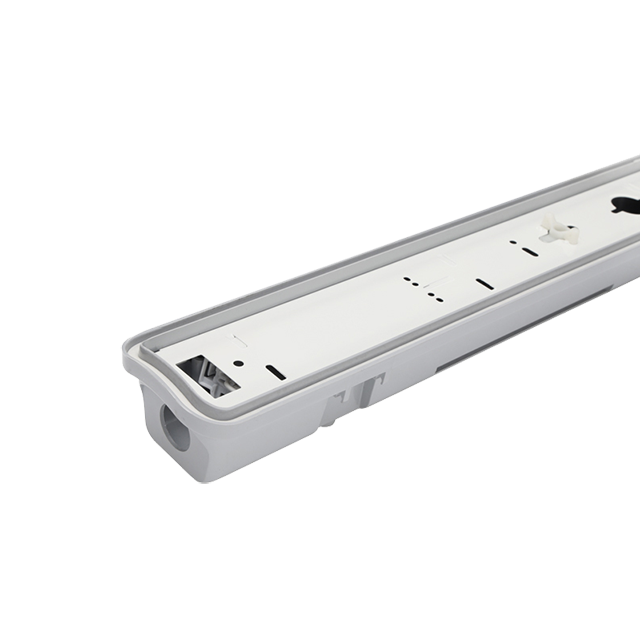

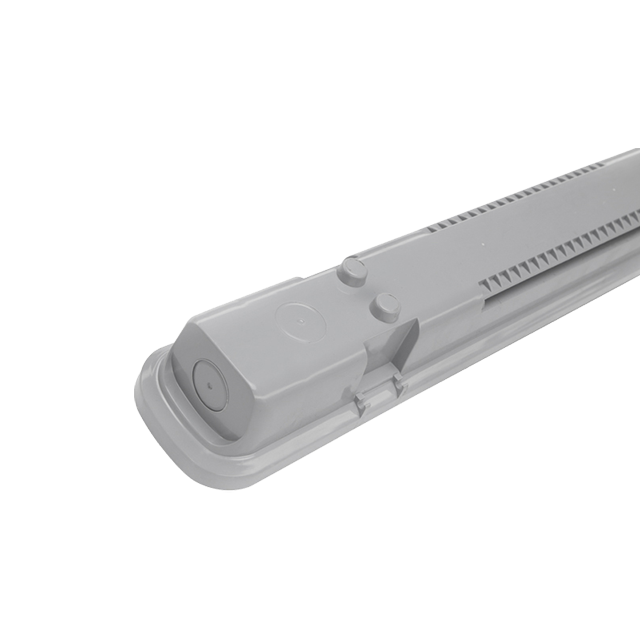

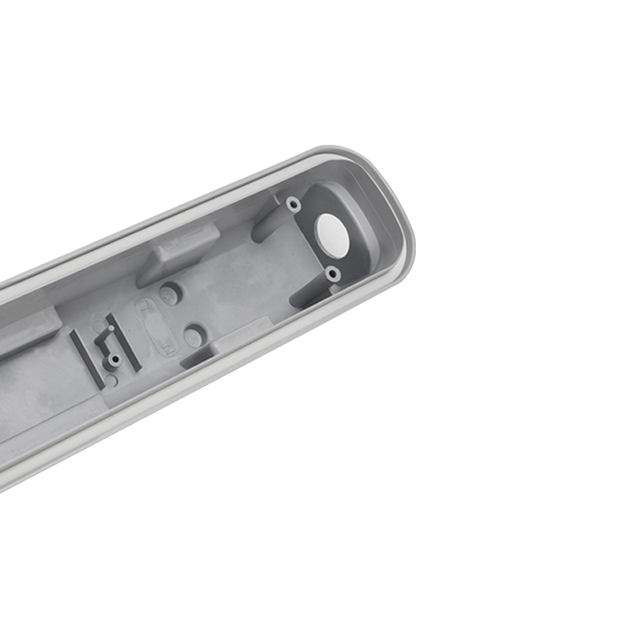

Housing :
RAL7035 light grey polycartonate; (ABS for option)
Diftuser:
Polycarbonate,prismalic inside for beltter light control; (PMMA for option)
Reflector:
High quallty iron sheet with white power coating

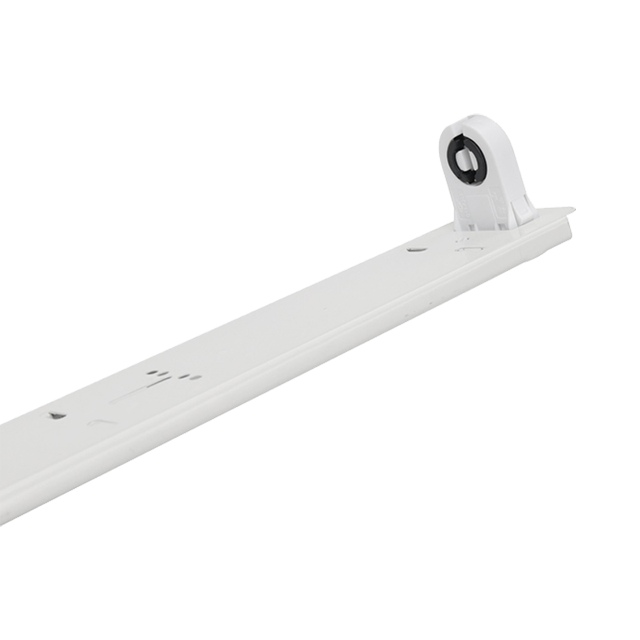

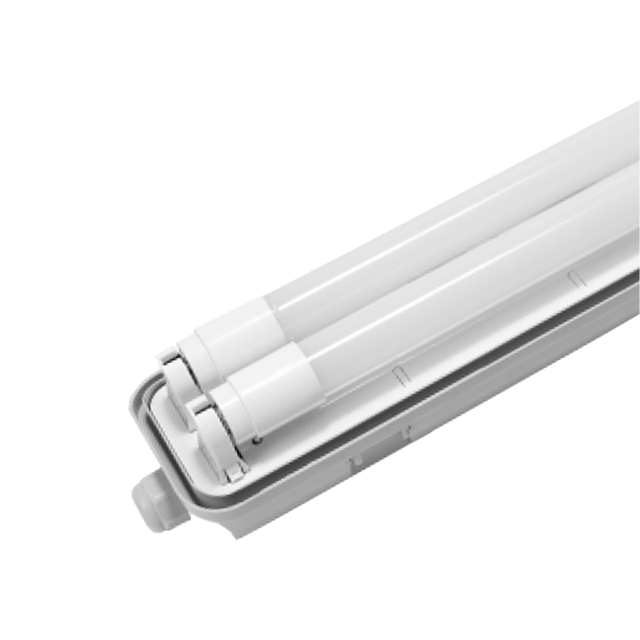

Lampholder:
T8-G13,
Terminal block:
3poles screw type,or 3poles screwless type;
Clip:
Polycarbonate clips or Stainless clips;
Mounting Bracket:
Stainless brackets;
Installation:
Easy and quick to install under ceiling or on surface
Hanger:
Plastic gear tray holder connected to the housing for easy maintenace
Accessory bag:
PG13.5 cable gland, expansion pipe and screws
Applications:
Approved for indoor use or outdoor use which need waterproof, dust-proof and moisture-proof
Friendly Reminder : DON'T DO
1. Whether can be installed on surfaces is subject to strong vibrations;
2. When using the PC difuser, please Don't use moderate or strong alkaline or acidic material or solvents or cleaning agents to the PC Diffuser. It will damage the Lamp.
3. Speclal enviroment using, PLEASE CONTACT US!
Lamp Structure:
Model No
SNO-TLAL-TH15-10W
SNO-TLAL-TH15-20W
SNO-TLAL-TH15-18W
SNO-TLAL-TH15-36W
SNO-TLAL-TH15-24W
SNO-TLAL-TH15-48W
Lamps
1x10W T8
2x10W T8
1x18W T8
2x18W T8
1x24W T8
2x24W T8
Clips Q'ty(pcs)
6
6
10
10
12
12
Product Size(mm
665*70*84
665*95*84
1275*70*84
1275*95*84
1575*70*84
1575*95*84
Carton Size(mm)
700*285*320
700*315*380
1310*285*320
1310*315*290
1610*285*245
1610*315*290
LF(mm)
330
330
840
840
1120
1120
Q'ty/CTN(pcs)
12
12
12
9
9
9
Clips OptionAvailable:
1. A.Poycartcnate Clips
2. B.S/S304 Clips
WATERPROOF LIGHTING FIXTURE
Features:
A. Fixtures with reflectors are firmer in structure and can obtain better heat dissipation
B. Fixtures without reflectors can still demonstrate excellent performance and are economical.
C. Anti-theft screws are available for option.
D. Triangular hooks and ceiling brackets are available for option.
E. PC or stainless steel clips are available option.
Housing :
RAL7035 light grey polycartonate; (ABS for option)
Diftuser:
Polycarbonate,prismalic inside for beltter light control; (PMMA for option)

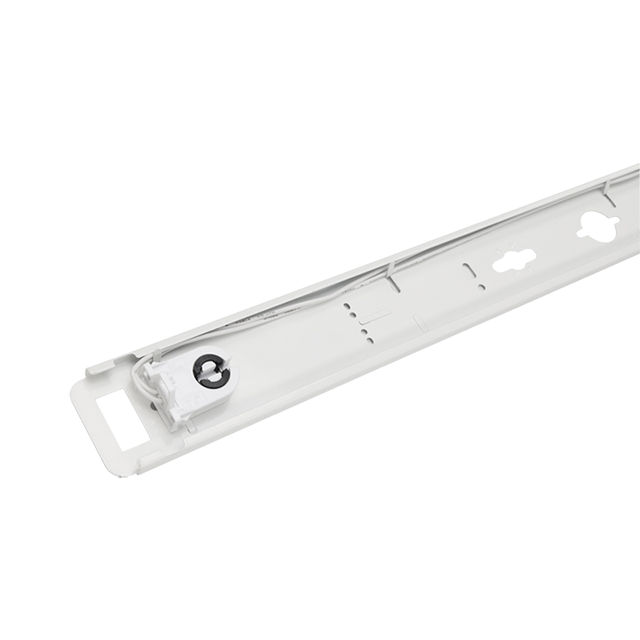

Reflector:
High quallty iron sheet with white power coating
Lampholder:
T8-G13,
Terminal block:
3poles screw type,or 3poles screwless type;
Clip:
Polycarbonate clips or Stainless clips;
Mounting Bracket:
Stainless brackets;
Installation:
Easy and quick to install under ceiling or on surface
Hanger:
Plastic gear tray holder connected to the housing for easy maintenace
Accessory bag:
PG13.5 cable gland, expansion pipe and screws
Applications:
Approved for indoor use or outdoor use which need waterproof, dust-proof and moisture-proof
Friendly Reminder : DON'T DO
1. Whether can be installed on surfaces is subject to strong vibrations;
2. When using the PC difuser, please Don't use moderate or strong alkaline or acidic material or solvents or cleaning agents to the PC Diffuser. It will damage the Lamp.
3. Speclal enviroment using, PLEASE CONTACT US!
Lamp Structure:
Model No
SNO-TLAL-TH15-10W
SNO-TLAL-TH15-20W
SNO-TLAL-TH15-18W
SNO-TLAL-TH15-36W
SNO-TLAL-TH15-24W
SNO-TLAL-TH15-48W
Lamps
1x10W T8
2x10W T8
1x18W T8
2x18W T8
1x24W T8
2x24W T8
Clips Q'ty(pcs)
6
6
10
10
12
12
Product Size(mm
665*70*84
665*95*84
1275*70*84
1275*95*84
1575*70*84
1575*95*84
Carton Size(mm)
700*285*320
700*315*380
1310*285*320
1310*315*290
1610*285*245
1610*315*290
LF(mm)
330
330
840
840
1120
1120
Q'ty/CTN(pcs)
12
12
12
9
9
9
Clips OptionAvailable:
1. A.Poycartcnate Clips
2. B.S/S304 Clips

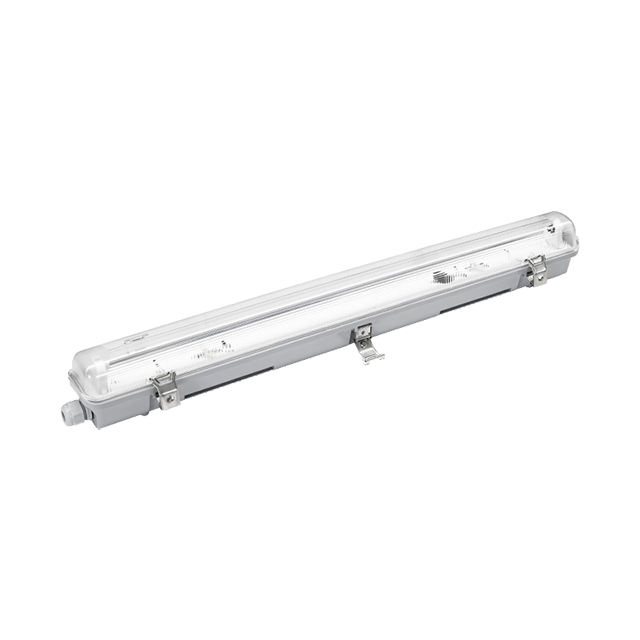

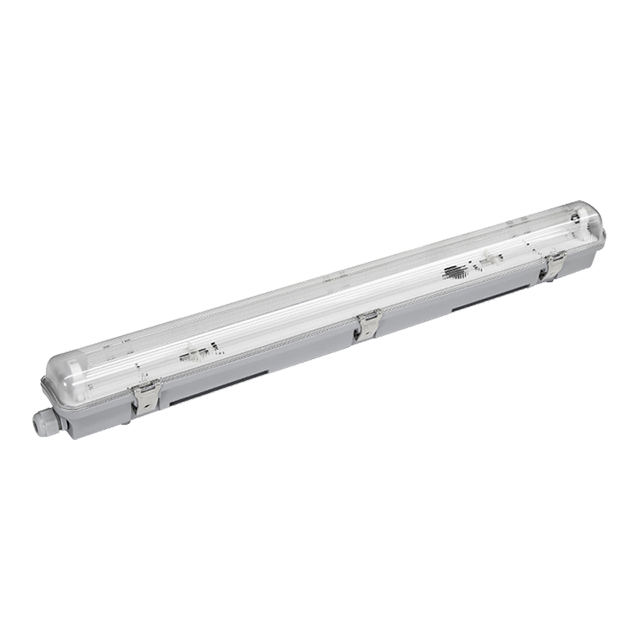

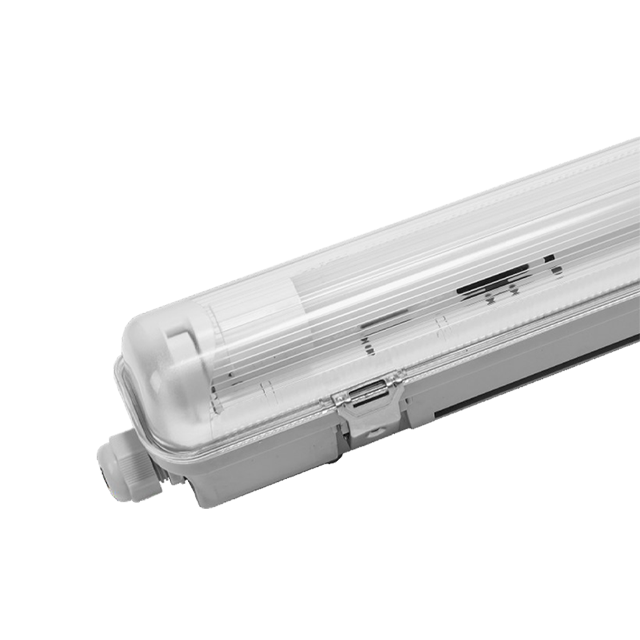

Product Name

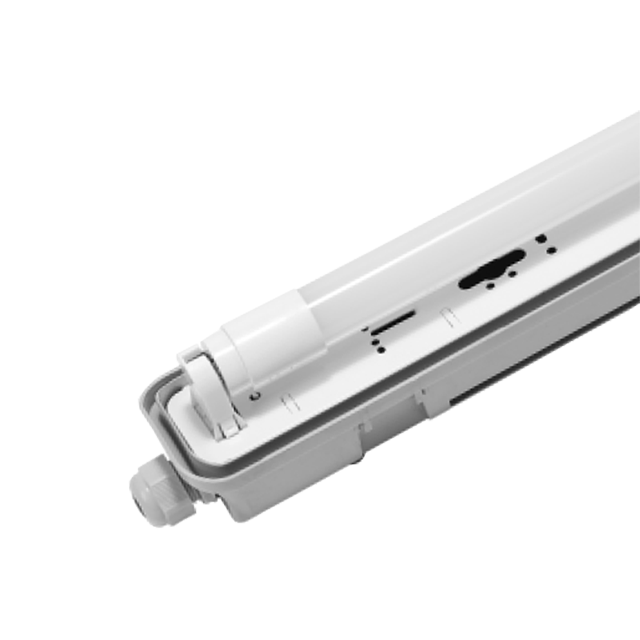

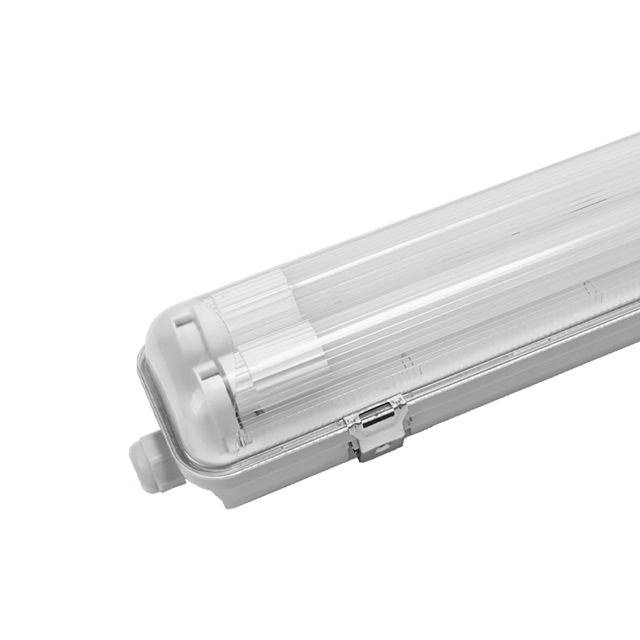

Three-Proof Lamps And Lanterns
Product Model
SNO-TLAL-TH15-10W
SNO-TLAL-TH15-18W
SNO-TLAL-TH15-36W
SNO-TLAL-TH15-48W
Power
10W
18W
36W
48W
Specification
665*70*84mm
1275*70*84mm
1275*95*84mm
1575*95*84mm
Shell Material
Polycarbonate (Optional ABS)
Reflector Material
Iron
Clip Material
Polycarbonate (Optional Stainless Steel)
Accessories Package
Pg13.5 Cable Joints Expansion Pipes and Screws
Color
Light Gray
Diffuser Material
Polycarbonate (Optional PMMA)
Lamp Holder Model
T8-G13
Illuminate
Need to Install The Lamp Tube
IP Grade
IP65
Mounting Bracket Material
Stainless Steel
Warranty
3 Years
