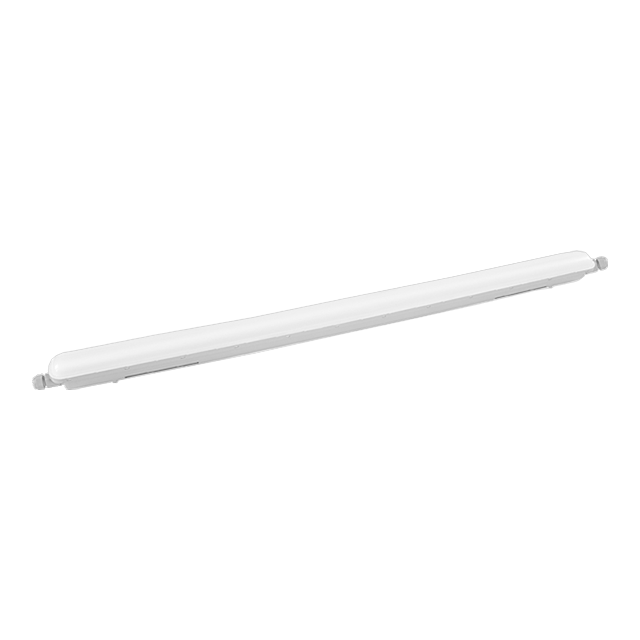

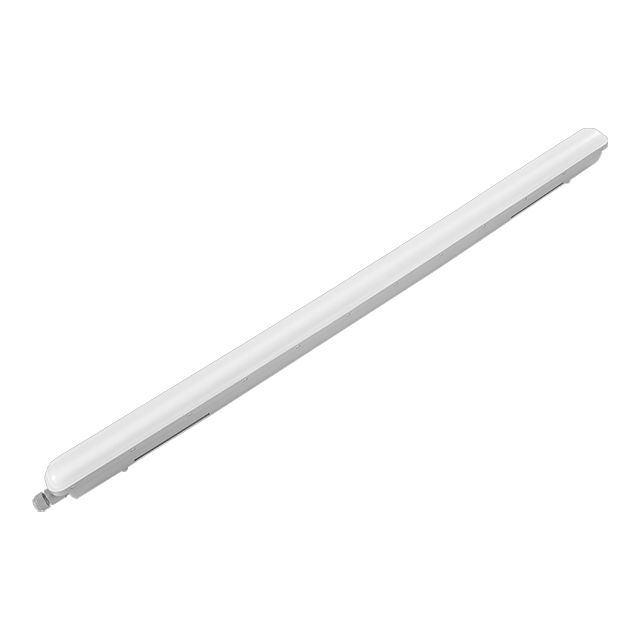

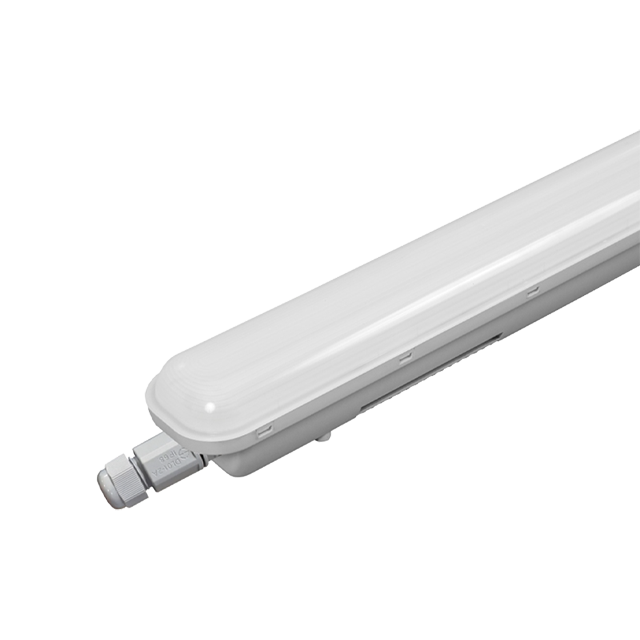

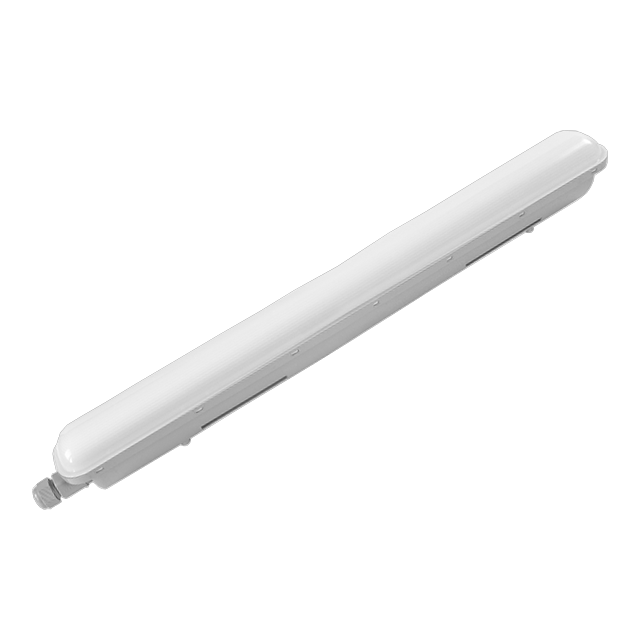

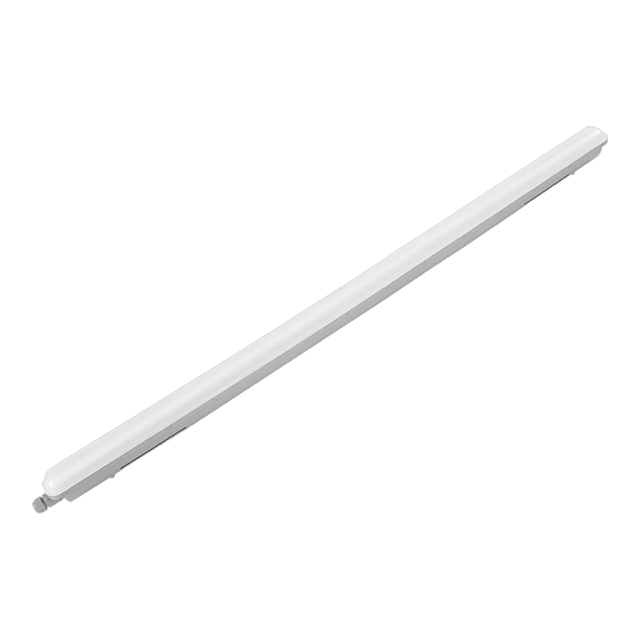

36W Modern Best-selling Gray Three-proof Lamp 3960lm IP65 Indoor Lighting 1200*70*68mm 4000K/6500K

  • SNO-TL-YL15

  • SNO-TL-YL15

power:
15W
24W
20W
36W
30W
50W
Voltage:
AC220-240V
Efficiency:
3960lm
Material:
PC
CCT:
4000K/6500K
IP Grade:
IP65
Size:
600*70*68mm
600*70*68mm
1200*70*68mm
1200*70*68mm
1500*70*68mm
1500*70*68mm
SKU:
Availability:
Inquiry Add to Inquiry


IP65 LED Waterproof Lighting Fixtures Trip-proof LED SMD

IP65 LED Waterproof Luminaire

Fast contactor

Sensor

Advantages


1. Reliable LED technology - Maintenance

2. Diffuser with optical design ensures visual comfort.

3. Cable through for easy and quick installation

4. Ceiling-mounted brackets and suspension hooks included

5. High efficiency up to 170lm/W for option.



Widerly Places Applications


1. Car Parks / Parking Lots

2. Residential accommodation

3. Factory


Specifications

Model SNO-TL-YL15-15W SNO-TL-YL15-24W SNO-TL-YL15-20W SNO-TL-YL15-36W SNO-TL-YL15-30W SNO-TL-YL15-50W
Power (Wattage)
 15W 24W 20W 36W 30W 50W
Input Voltage
 AC220-240V
Frequency
 50/60Hz
Efficiency (Lumen) 1650lm 2640lm 2200lm 3960lm 3300lm 5500lm
Body&Lens Mterial PC
Body Color Grey(RAL7035)
LED Driver
 PHILIPS/OSRAM/TRIDONIC
LED Type
 28350.5WEVERLIGHT/LUMILEDS
Working Temperature -20to+35
IPRate IP65
IKRate IK08
Beam Angle of Light Source
 120 °
Protection Class IEC
 Safety Class Ⅰ
SDCM <4
Light Source Replaceable
 NO
Color Temperature
 3000K4000K5000K5700K6500K
Color Rendering Index (CRI)
 80
Driver Failure Rate @ 5000h <1%
Power Factor
 >0.9
Product Size 600x70x68mm 1200x70x68mm 1500x70x68mm
Inner Box Size
 640x77x77mm 1240x77x77mm 1540x77x77mm
Carton Size 655x325x250mm 1255x250x250mm 1555x250x250mm
Qty/CTN 12pcs 9pcs 9pcs



36W Modern Best-selling Gray Three-proof Lamp 3960lm IP65 Indoor Lighting 1200*70*68mm 4000K/6500K

1. CE CB ROHS certification China-made LED modern three-proof lamp IP65 waterproof and dustproof IK08 explosion-proof beam angle 120 degrees 50W 5500lm gray three-proof lamp 2. Aluminum plate is used inside, and cable joints can be connected quickly. IP65 waterproof and dustproof modern three-proof lamp IK08 explosion-proof 3-year warranty AC220-240V. 3. IP65 waterproof and dustproof IK08 explosion-proof wholesale three-proof lamp 50W 5500lm outdoor lighting PC gray tube beam angle of 120 degrees 4. Gray LED modern three-proof lamp 50W modern lighting IP65 waterproof lighting IK08 explosion-proof lighting beam angle 120 degrees 1.5m 5. Product dimensions Figure 1.5M Best selling LED modern three-proof lamp IP65 waterproof lighting IK08 explosion-proof outdoor lighting beam angle is 120 degrees
1.2m 36w plastic tri-proof ligh 1.2m led linear tri-proof light 1.2m garage tri-proof light
