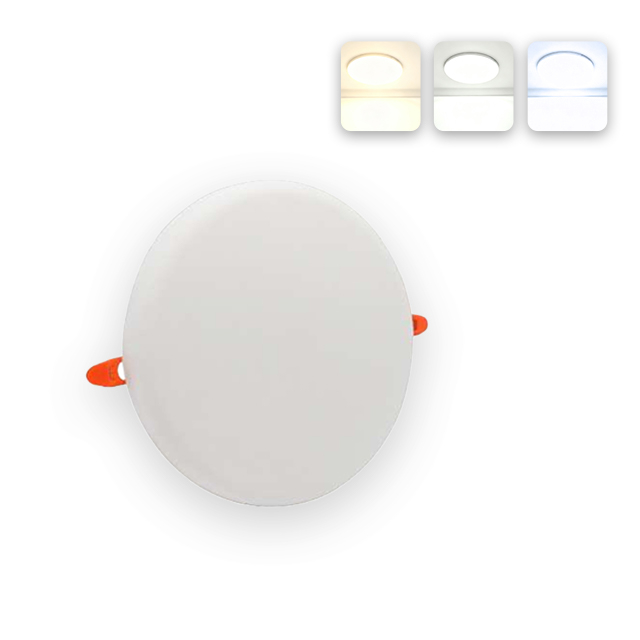

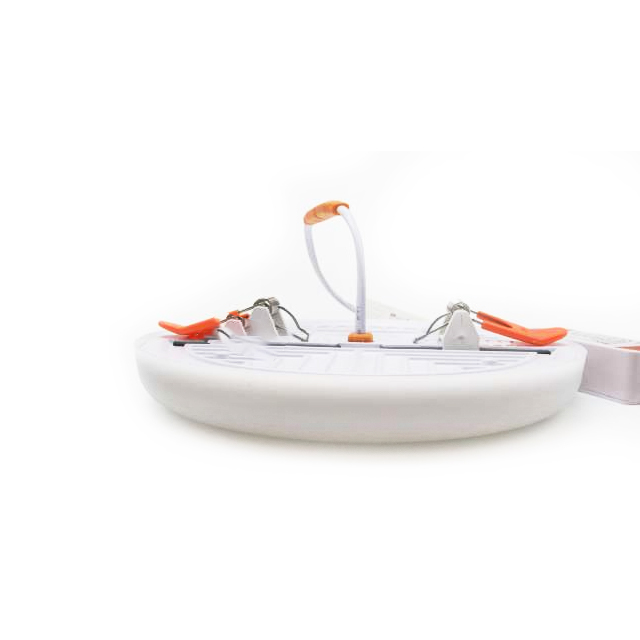

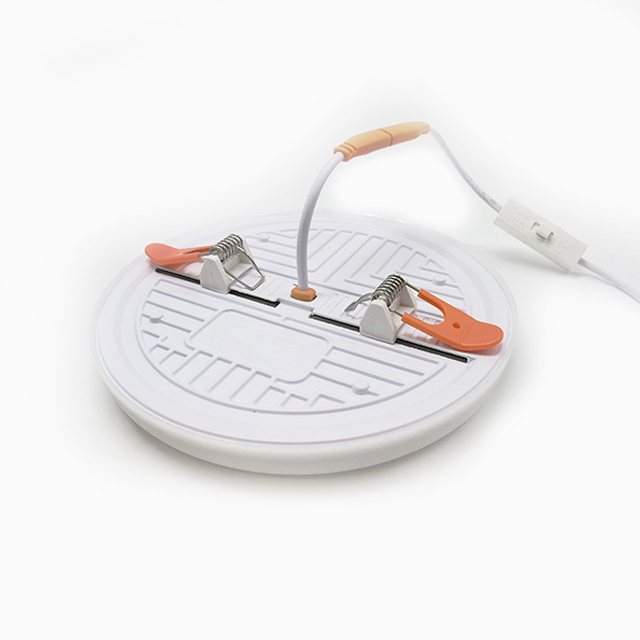

36W 3CCT Frameless LED Panel Light | Ø225mm
This 36W 3CCT frameless LED panel light features a Ø225mm diameter and ultra-slim design for recessed indoor lighting applications. With an aluminium housing and PC diffuser, it combines a clean frameless appearance with practical construction. The 3CCT function provides selectable 3000K, 4000K and 6000K colour temperatures for different indoor lighting requirements.
Key Specifications: 36W | Ø225mm | 3CCT | Aluminum + PC | IP44 | CE | RoHS
| NF236: | |
|---|---|
| PIECES: | |
| wattage : | |
| Colour Temperature: | |
| Size: | |
| SKU: | |
| Availability: | |
|
| |
3CCT Adjustable Colour Temperature
Choose between 3000K, 4000K and 6500K to suit different indoor lighting environments and project requirements.
Frameless Design
The frameless front design creates a clean and modern ceiling appearance suitable for contemporary interior spaces.
Ø225mm Diameter
The Ø225mm format provides a larger panel light option within the series for applications requiring a higher power configuration.
Ultra-Slim Design
The low-profile construction provides a discreet recessed lighting solution for indoor ceiling applications.
Aluminum + PC Construction
The aluminum housing and PC diffuser provide a practical combination of structural strength, heat management and light diffusion.
IP44 Protection
The IP44 rating provides protection against solid objects and water splashes from typical indoor directions.
Product Specifications
Product Type Frameless LED Panel Light
Power 36W
Diameter Ø225mm
Material Aluminum + PC
Design Frameless, Ultra Slim
Protection Rating IP44
Installation Recessed
Light Source LED
Input Voltage 220–240V AC
Color Temperature 3CCT (3000K-4000K-6000K)
Luminous Flux 2880 lm
Color Rendering Index CRI >80
Beam Angle 120°
Dimmable No
Lifetime 25000 h
Operating Temperature -20 ~ 40ºC
Certifications / Compliance CE, RoHS
3CCT Lighting Flexibility
The 36W model offers three selectable color temperatures for different indoor applications:
3000K Warm White
Suitable for residential interiors, hospitality spaces and areas where a warmer atmosphere is preferred.
4000K Neutral White
Suitable for offices, retail spaces and general commercial interiors.
6000K Cool White
Suitable for functional indoor environments where a cooler light appearance is preferred.
The 36W Ø225mm panel light can be considered for:
Offices
Commercial buildings
Retail spaces
Hotels
Reception areas
Corridors
Residential projects
Interior renovation projects
The 36W model completes the higher-power option within the 3CCT frameless LED panel light series.
The series provides four wattage and diameter options:
9W | Ø90mm
18W | Ø120mm
24W | Ø175mm
36W | Ø225mm
This standardized range allows distributors, wholesalers, contractors and project buyers to source different configurations within one product family.
Snorder can support B2B purchasing with product documentation, samples, packaging coordination, OEM / branding options and export logistics.
Compliance & Documentation
CE and RoHS documentation is available according to the applicable product configuration.
Technical documents may include:
Product Datasheet
Technical Specifications
Installation Guide
CE Documentation
RoHS Documentation
What CCT options are available?
The 36W model supports 3000K, 4000K and 6500K through its 3CCT function.
What is the diameter of the 36W model?
The nominal face diameter is Ø225mm. Please refer to the technical drawing for detailed installation dimensions.
Is the product suitable for outdoor applications?
The product is primarily designed for indoor use. IP44 provides limited protection against water splashes but does not make the product a fully waterproof outdoor luminaire.
Are lower wattages available?
Yes. The same series includes 9W, 18W and 24W models with different diameters.
Request a Quote
Tell us your required wattage, diameter, CCT, quantity and application. Our team can help you identify a suitable configuration for your project or purchasing plan.
