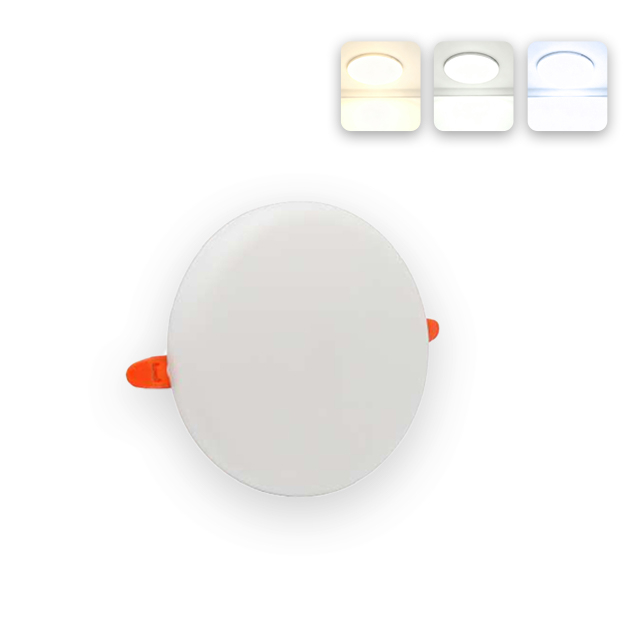

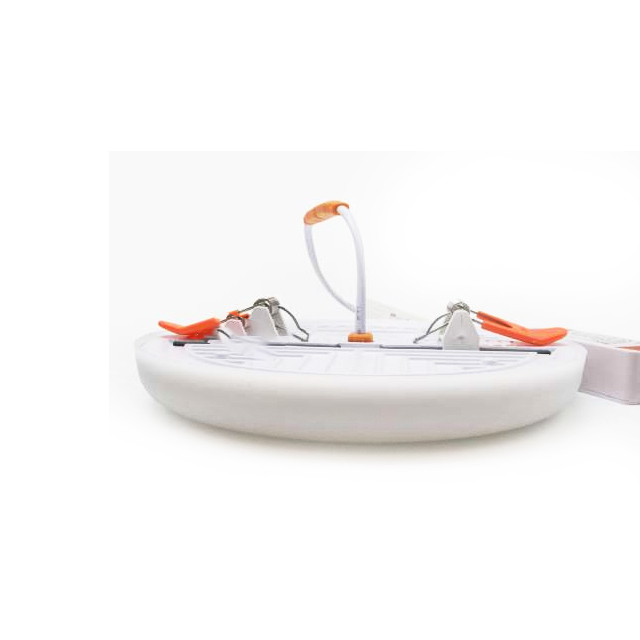

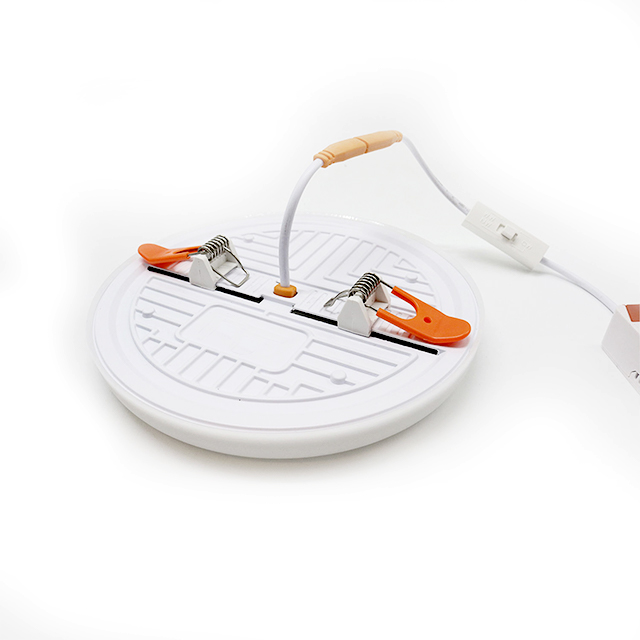

24W 3CCT Frameless LED Panel Light | Ø175mm
This 24W 3CCT frameless LED panel light features a Ø175mm diameter and ultra-slim design for recessed indoor lighting applications. The aluminum and PC construction provides a clean, modern appearance, while the 3CCT function allows selection between 3000K, 4000K and 6000K.
Key Specifications: 24W | Ø175mm | 3CCT | Aluminum + PC | IP44 | CE | RoHS
| NF229: | |
|---|---|
| PIECES: | |
| wattage : | |
| Colour Temperature: | |
| Size: | |
| SKU: | |
| Availability: | |
|
| |
3CCT Adjustable Colour Temperature
Select 3000K, 4000K or 6500K according to the requirements of different indoor environments.
Frameless Design
The frameless front design provides a clean and minimalist ceiling appearance for modern interiors.
Ø175mm Diameter
The Ø175mm format provides a practical option for indoor applications requiring a larger recessed panel light.
Ultra-Slim Design
The slim construction is designed to provide a low-profile lighting solution for recessed ceiling applications.
Aluminum + PC Construction
The aluminium housing and PC diffuser provide a practical combination of durability, heat management and light diffusion.
IP44 Protection
The IP44-rated construction provides protection against solid objects and water splashes from typical indoor directions.
Product Specifications
Product Type Frameless LED Panel Light
Power 24W
Diameter Ø175mm
Material Aluminum + PC
Design Frameless, Ultra Slim
Protection Rating IP44
Installation Recessed
Light Source LED
Input Voltage 220–240V AC
Color Temperature 3CCT (3000K-4000K-6000K)
Luminous Flux 1920 lm
Color Rendering Index CRI >80
Beam Angle 120°
Dimmable No
Lifetime 25000 h
Operating Temperature -20 ~ 40ºC
Certifications / Compliance CE, RoHS
3CCT Lighting Flexibility
The 24W model supports three selectable colour temperatures:
3000K Warm White — suitable for residential and hospitality interiors.
4000K Neutral White — suitable for offices, retail areas and general commercial lighting.
6000K Cool White — suitable for functional indoor environments where a cooler light appearance is preferred.
The 24W Ø175mm panel light is suitable for:
Offices
Retail spaces
Hotels
Corridors
Commercial interiors
Residential projects
Property renovation
General indoor lighting
As part of a multi-wattage product family, the 24W model provides buyers with a consistent product platform across different project requirements.
Suitable for:
Lighting distributors
Electrical wholesalers
Contractors
Project buyers
Lighting suppliers
Snorder can support product sourcing, documentation, packaging coordination and international export logistics.
Compliance & Documentation
CE and RoHS documentation is available according to the applicable product configuration.
Technical documentation can include:
Datasheet
Technical Specifications
Installation Guide
CE Documentation
RoHS Documentation
What CCT options are available?
The product supports 3000K, 4000K and 6500K through its 3CCT function.
What is the face diameter?
The 24W model has a nominal face diameter of Ø175mm.
What material is used?
The product uses an aluminium housing and PC diffuser.
Can I order other wattages?
Yes. The series includes 9W, 18W, 24W and 36W models.
