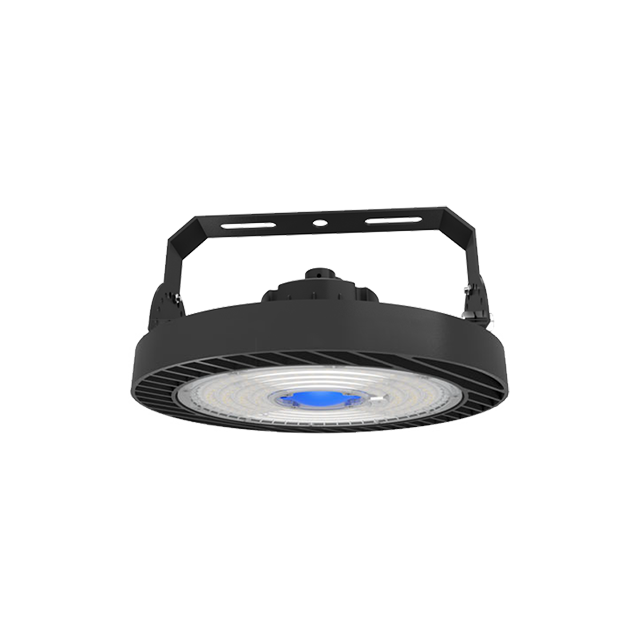

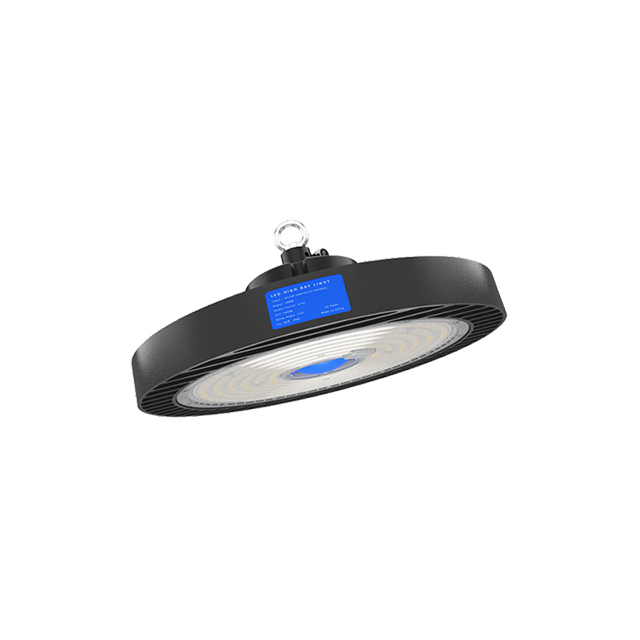

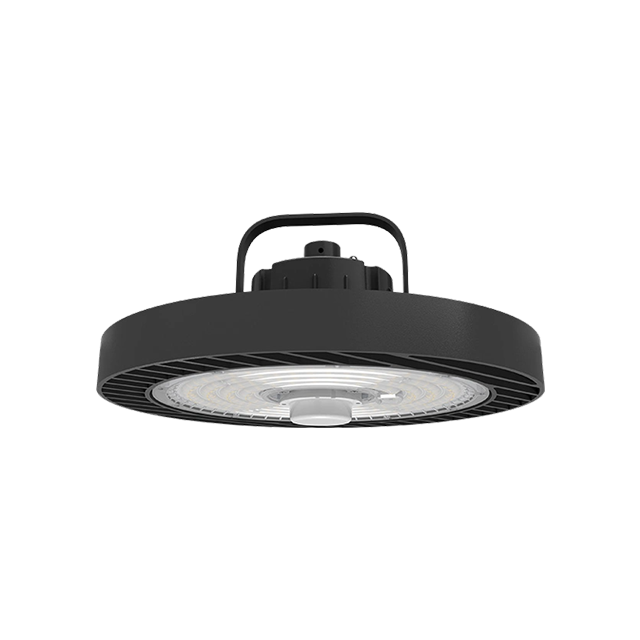

150W Warehouse Industrial Led High Bay Light Lumileds 2835 Waterproof IP65

HELIOS LED High Bay Light
  • SNO-HBL-H

  • SNO-HBL-H

Power:
Luminous efficiency:
Size:
286*286*147mm
286*286*147mm
330*330*165mm
330*330*165mm
LED:
Colour temperature:
SKU:
Availability:

PDF Export

Product Name
High Bay Light
Product Model
SNO-HBL-HS-140-100W
SNO-HBL-HS-190-100W
SNO-HBL-HS-140-150W
SNO-HBL-HM-190-150W
SNO-HBL-HM-145-200W
SNO-HBL-HM-190-200W
Power
100W
150W
200W
Lumen
140 lm/w
145 lm/w
190 lm/w
Beam angle
60°
90°
110°
Size
286*286*147mm
330*330*165mm
CCT
3000K
4000K
5000K
5700K
LED
Lumileds 2835
Lumileds 3030
DRIVER
SOSEN
Input Voltage
100-240/277V AC 50/60Hz
Dimming
0-10V /PWM dimming
CRI
>70
IP Rating
IP65
IK Rating
IK10
Lifetime
L70 > 100000hrs
Available
bracket mounting
motion sensor
Power Factor
> 0.95
THD
< 10
SPD
4KV line-line
6KV line-earth
Lumen
19000lm
14500lm
21000lm
28500lm
38000lm
29000lm
Standard Deviation of Color Matching
<5 SDCM
Body Material
Die-cast Aluminum Housing
Housing Color
Black
Cover Material
PC
Ambient Temperature Range
-40°C ~ +50°C
Warranty
5 years

150W Warehouse Industrial Led High Bay Light Lumileds 2835 Waterproof IP65

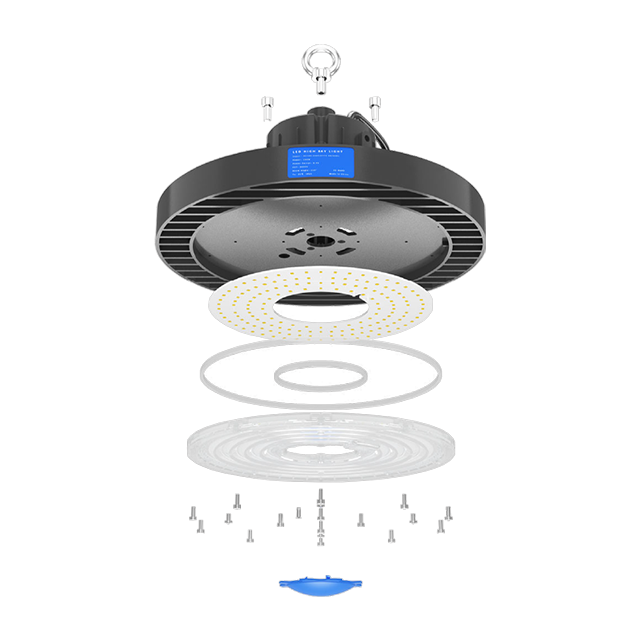

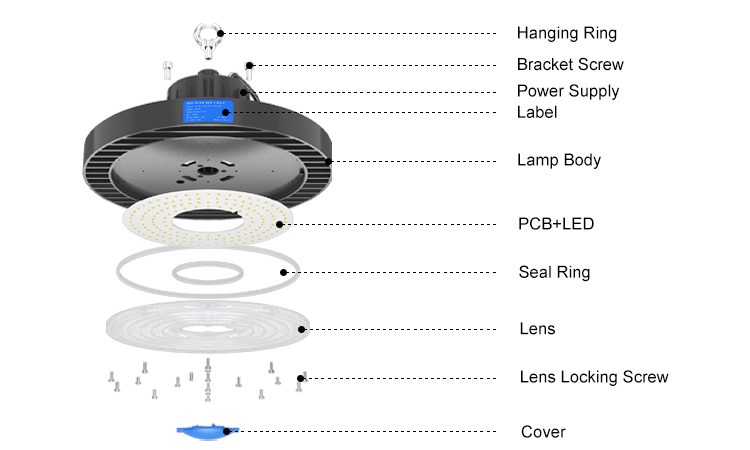

1. 5-year warranty industrial LED best-selling high-ceiling lamps, 100W 150W 200W optional, IP65 waterproof and dustproof IK10 explosion-proof, industrial lighting, CE and ROHS product cer2. Product structure diagram 1. Hanging Ring 2. Brackett Screw 3. Power Supply 4. Label 5. Lampbody 6. PCB+LED 7. SealRing 8. Lens 9. Lens Locking Screw 10. Cover, LED industrial modern in3. Product line size diagram, product size 286L147mm, 330L165mm, LED commercial mining lamp made in China, 100W 150W 200W optional, efficiency 190lmw, 300K4000K500K5700k optional, 5-year w4. Intelligent control, microwave motion sensor, LED outdoor industrial and mining lamp made in China, best selling industrial high shed lamp, voltage 110-240 277VAC, beam angle 60 degrees5. Zigbee wireless control system, system diagram, wholesale industrial and mining lamps, industrial ceiling lamps, voltage 100-240 277VAC, beam angle 60 degrees 90 degrees 110 degrees, 306. Installation method messenger wire installation, wall installation. Accessories motion sensor, Zigbee controller, safety chain, PC lens, reflector and bracket. China manufactures indust
